Screw-in Lead P12 Model 3844 VB / 3744 VB

Screw-in Lead P12
Model 3844 VB

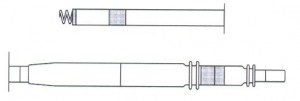

screw_in_lead
The electrically active helix of Leads are designed to extend easily for active fixation and retract for safe and easy venous passage.
The pacing leads combines the benefits with screw-in, active fixation, to allow safe, long-lasting, low-threshold delivery of pacing therapies.

  • Bipolar
  • Active ventricular fixation
  • Straight lead tips
  • 8.0F



Technical Specifications
Length 58.0 cm ± .5cm
Connector IS1 3.2 mm Bipolar
Conductor material MP35N
Tip electrode material Platinum Iridium
Electrode diameter 2.0 mm
Electrode area 8.0 mm2
Electrode configuration Tip – active helix and active annular collar
Ring – cylindrical
Maximum helix revolutions Straight Stylet – 8
Suggested introducer size 8F / 7F
Resistance 20 Ω ± 5 Ω (Uni) , 90 Ω ± 5 Ω (Bi)
Insulating material Silicone
Contents 1 Clip on Tool
3 stylets
